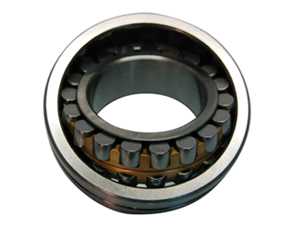

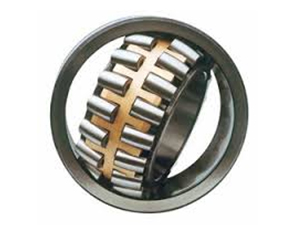

Spherical Roller Bearings

Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust to carry heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer ring raceway surface coincides with the bearings axis.

Standard Spherical Roller Bearings are produced with straight bores; however, tapered bores are available upon request and may be mounted directly on tapered shafts. Pressed steel and machined brass cages are typically used.
